Big-O: Time and Space Complexity Analisys

Definition

The Big-O notation provides us the information of how fast a given algorithm is. It allows us to compare the number of operations and informs us of how quickly the algorithm grows. This particular way of measuring the runtime of an algorithm takes into account the worst case, i.e. in the worst possible scenario we can be sure that an algorithm performance won’t be worse than its Big-O notation. The speed of an algorithm is not measured in seconds, but based on the growth of the number of operations, in other words, it is based on how quickly the runtime increases as the input size grows. Big-O allows us to express how the runtime scales.

Common Big-O notations

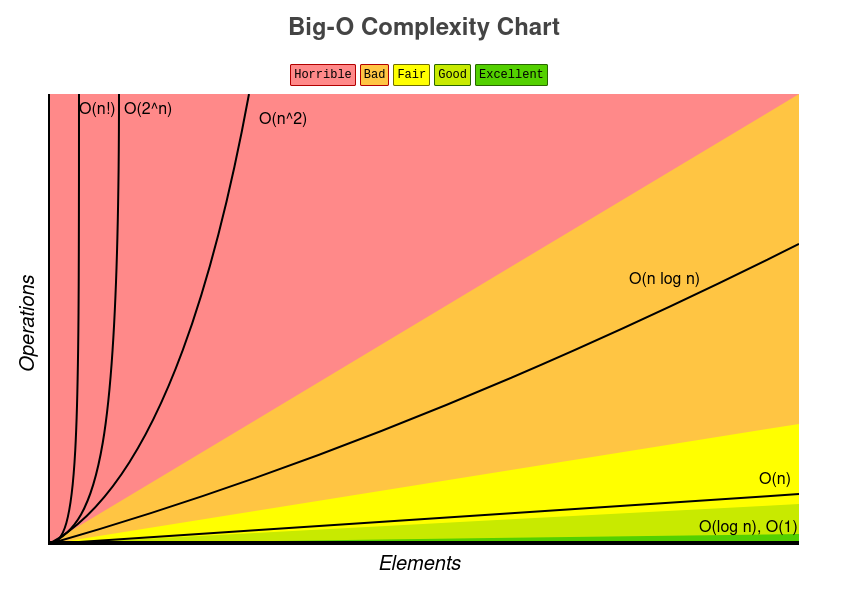

The chart below ilustrates how the most common Big-O running times behave as the size of the input grows (source: Big-O Cheatsheet by Eric Rowell).

Big-O Chart

Common time complexities ordered from best to worst:

Constant - O(1):

A constant runtime means that no matter the size of the input, the performance of the algorithm will be the same. Since this algorithm runtime does not depend on the size of the input, the number of operations remains constant and does not increase as the input size grows.

It is good to mention, however, that a constant runtime does not mean that something happens instantaneously, but that the runtime will always be the same no matter how large the dataset is.

Example: In the function getMax below, no matter the values of a and b, getMax always performs the same amount of operations.

function getMax(a, b) {
  if (a > b) {
    return a;
  }
  return b;
}

Logarithmic - O(log n):

If an algorithm has a time complexity of O(log n), the bigger its input size, the smaller proportion of the actual input your program has to go through. A logarithmic algorithm is the opposite of an exponential one. When something grows exponentially, it means that, at each step, the number of operations is multiplied by a factor. Whereas, when an algorithm grows logarithmically, the number of operations needed is being divided by this factor at each step. Assuming the base of the logarithm as being 2, this means that the size of the dataset that the algorithm has to go through gets divided by 2 at each step.

A traditional example for O(log n) runtime is binary search. Consider an ordered array of size n and a target value. If we were to use linear search to find target in array, in the worst case scenario that we begin at the first position in array and target is the last element, we’d have to search the entire array, thus performing n comparisons. However, using a binary search algorithm like the one below, since at each step we half the amount of elements to be searched, the total number of operations necessary is at most log (input_size) or log n.

Example - Binary search:

function binarySearch(array, target) {
  let start = 0;
  let end = array.length - 1;

  while (start <= end) {
    if (array[start] === target) return start;
    if (array[end] === target) return end;

    let mid = Math.round((start + end) / 2);

    if (target === array[mid]) return mid;

    if (target > array[mid]) start = mid + 1;
    else if (target < array[mid]) end = mid - 1;
  }

  return -1;
}

Example:

array = [11, 23, 30, 45, 51, 62, 70, 89, 95, 100, 110]
target = 100

start = 0
end = array.length - 1 = 10

step 1 - dataset searched [11, 23, 30, 45, 51, 62, 70, 89, 95, 100, 110]
  array[start] != target
  array[end] != target

  mid = (start + end) / 2 = 10 / 2 = 5

  target > array[mid] -- 100 > 62:
    start = mid + 1 = 6

step 2 - dataset searched [x x x x x x 70, 89, 95, 100, 110]
  array[start] != target
  array[end] != target

  mid = (start + end) / 2 = (6+10) / 2 = 8
  target > array[mid] -- 100 > 95:
    start = mid + 1 = 9

step 3 - dataset searched [x x x x x x x x x 100, 110]
  array[start] == target: return start -- return 9

As we can see, we begin with an n sized array to search. After the first step, we’re searching through only n/2 elements. One more step and we’re down to n/4 elements to search. We are done when we either find target or we’re down to only one element.

The total runtime can be expressed as how many steps, dividing n by two each time, we need too take until n becomes 1. For the example above, where n = 11:

# of steps: log(n) = log(11) = ~3, which matches our example.

Let’s apply this reasonig to a larger dataset. Consider now that we want to find a person by searching for his registered unique ID in an ordered database containing fifty million registered IDs. If we decide to use linear search here, in the event that our target ID is the last in the dataset or does not exist, we’d have to look and compare all the fifty million elements in the dataset. However, if we were to use binary search to find the person, that would take:

step 1: 50000000 / 2 = 25000000
step 2: 25000000 / 2 = 12500000
step 3: 12500000 / 2 = 6250000
step 4: 6250000 / 2 = 3125000
step 5: 3125000 / 2 = 1562500
step 6: 1562500 / 2 = 781250
...
step 25: 2.98 / 2 = ~1

or simply, log(50000000) = ~25

25 steps at worst, which is a huge improvement over the linear search. We can see that the growth rate of the runtime for both algorithms is very different, while linear search follows the size of the dataset, binary search gets faster in proportion as the size of the dataset grows.

Linear - O(n):

If the total number of operations that an algorithm performs is directly proportional to the size of the input, it is said to have a linear runtime because, in the worst case scenario, the maximum number of operations will be equal to the input size.

Suppose we’re searching for a target element in an array of size n using a simple linear search. The algorithm checks each array element and compares it to target to see if there is a match. If there’s a match, we return the position of target in the array. In the event that target is not present in the array, the algorithm will keep running until it gets to the end of the array. Since that, for the worst case, the number of times the algorithm will run is equal to the size of the input, n, it is said to have a linear runtime or O(n).

Example - Linear search:

function searchArray(array, target) {
  let n = array.length;

  for (let i = 0; i < n; ++i) {
    if (array[i] === target) {
      return i;
    }
  }
  return -1;
}

Quadratic - O(n^2):

Consider the following expansion of the algorithm for linear search to search for a target value inside a nxn matrix as can be seen in the example below, where i represents the row index and j represents the column index. We can see that for each value of i in the outer for loop, the algorithm in the inner for loop can run up to n times. Thus, in the event that target does not exist in the matrix or it is the last element, the code inside the inner for loop runs n times for each iteration of the outer loop, which also goes up to n. This way, the total numbers of operations is O(n * n) -> O(n^2).

Example - Linear search in a nxn matrix:

function searchMatrix(matrix, target) {
  let n = matrix.length;

  for (let i = 0; i < n; ++i) {
    for (let j = 0; j < n; ++j) {
      if (matrix[i][j] === target) {
        return [i, j];
      }
    }
  }
}

Other common running times:

Linearithmic - O(n * log n): Merge Sort
Exponential - O(b^n), where b > 1: Fibonacci
Factorial - O(n!): Generate all the permutations of a list

Determining the Big-O notation

General rules

Different steps get added. Also, different inputs means different variables.
- Example - Find out the largest value between two arrays:

function findMax(arr_A, arr_B) {
  let max_A = arr_A[0];
  let max_B = arr_B[0];

  for (let i = 1; i < arr_A.length; i++) {
    if (arr_A[i] > max_A) {
      max_A = arr_A[i];
    }
  }

  for (let j = 1; j < arr_B.length; j++) {
    if (arr_B[j] > max_B) {
      max_B = arr_B[j];
    }
  }

  return max_A > max_B ? max_A : max_B;
}

Consider the size of arr_A and arr_B as being A and B respectively. Since all the other operations are just comparisons or assignments that don’t depend on the size of the arrays, they have constant runtime, O(1), Thus, the time complexity of this algorithm will be the sum of the runtimes for calculating the largest element in each array, O(A + B).

Drop the constants
- Example - Find min and max elements in a given array:

function findMin(arr_A) {
  let min_A = Number.MAX_SAFE_INTEGER;
  let max_A = Number.MIN_SAFE_INTEGER;

  for (let i = 1; i < arr_A.length; i++) {
    if (arr_A[i] > max_A) {
      max_A = arr_A[i];
    }
  }

  for (let i = 1; i < arr_A.length; i++) {
    if (arr_A[i] < min_A) {
      min_A = arr_A[i];
    }
  }

  return [min_A, max_A];
}

Consider the size of arr_A as being n. The time complexity of this algorithm will be the sum of the runtimes for calculating the largest and smallest element in arr_A. Thus, we may be tempted to think that the runtime would be O(n + n) = O(2n). However, Big-O just describes the rate of increase of the runtime, so we keep only the part that depends on the input, i.e., the variable part, so the time complexity of this algorithm is O(n).

Drop the non-dominant terms
- Example:

- O(n^2 + 5n) becomes O(n^2)
- O(10000*n + 5500000000*logn) becomes O(n)
- O(500*n^25 + 2^n) becomes O(2^n)

Steps:

Identify your code
Identify what n means
Count the steps in a typical run (Rule #1)
Keep the most significant part (Rules #2 and #3)

Space Complexity

All that we’ve seen so far was related to Time Complexity analysis. However, that’s not the only important thing to take into account when designing an algorithm. We might also have memory consumption constraints that our algorithm must comply with. The concept that allows us to express how the memory consumption scales in a algorithm is called Space Complexity.

Consider an algorithm that takes an array arr of size n, performs an operation in each of arr’s elements and stores the result in a new array of the same size. Since the memory consumption is proportional to arr’s size, the space complexity this algorithm will be O(n).

We must also take into account stack space in recursive calls. Consider the algorithm below for calculating the factorial of a number.

Example - Factorial calculation:

function factorialRecursively(n) {
  if (n === 1) {
    return 1;
  }
  return n * factorialRecursively(n - 1);
}

factorialRecursively(5):
    ...
    factorialRecursively(4):
        ...
        factorialRecursively(3):
            ...
            factorialRecursively(2):
                ...
                factorialRecursively(1) --> stack unwind

Each call to factorialRecursively is added to the call stack and takes up actual memory. Thus, since this algorithm will perform n calls until it reaches the base case, it has a space complexity of O(n).
